EVAPORATOR
Multiple Effect Evaporator is necessity of all industries which are generating effluent to achieve Zero Liquid Discharge plant. Zero liquid discharge plants is a combination of ETP, RO & Evaporator depending upon nature of ff uent. We design the MEE considering the physical and chemical properties of the effluent. Hands on experience in the held ensure the solution at optimum cost of investment and operation.
EVAPORATOR BASED ON THERMO VAPOUR RECOMPRESSOR(TVR) TECHNOLOGY
In TVR normally vapour generated from first effect getting mix with live steam, this mixed system used as a heating source for 1st effect by this way we arte enhancing the steam economy.

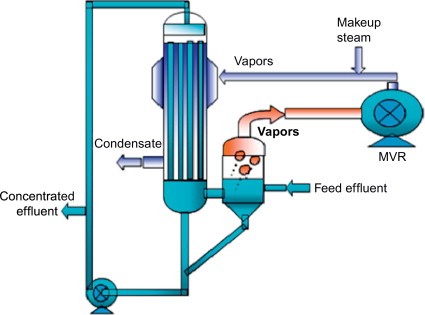

EVAPORATOR BASED ON MECHANICAL VAPOUR RECOMPRESSOR (MVR) TECHNOLOGY
Normally its comes with single effect, complete vapour generated getting compressed with mechanical blower.

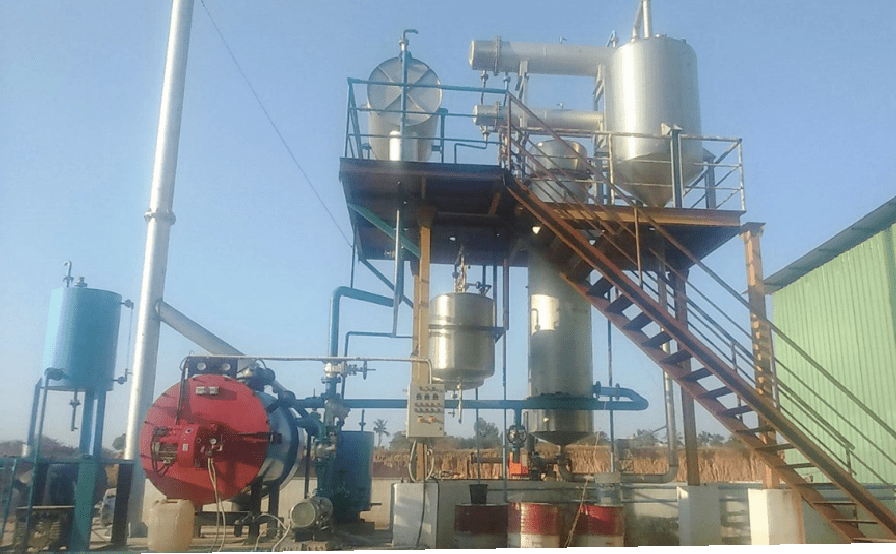

EVAPORATOR WITH THERMIC FLUID HEATER AS HEAT SOURCE
TYPE OF EVAPORATORS
FALLING FILM EVAPORATOR
| A | B | C | D | E |
|---|---|---|---|---|
|
Feed |
Vapours |
Concentrate
|
Steam |
Condensate
|
FALLING FILM EVAPORATOR

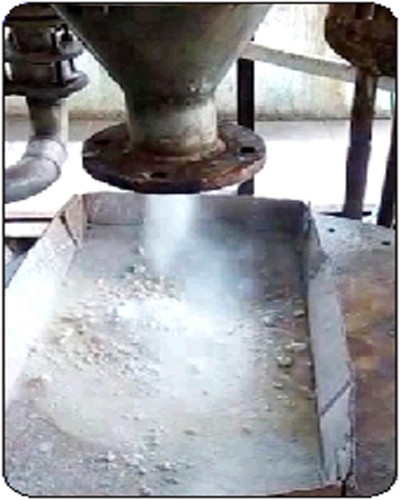

ATFD (AGITATED THIN FILM DRYER)
In the ATFD (AGITATED THIN FILM DRYER) the concentrated effluent from the MEE plant is treated for complete separation of solids and liquid.
The selection of ATFD or any other centrifuge depends on the COD value of the effluent.
Many times for small industries having very little effluent generation, it is economical to use ATFD directly (without MEE). The Dry Powder obtained from ATFD can be either used as a by-product or be sent for disposal.
